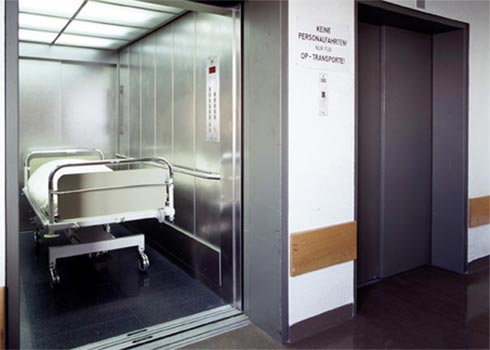

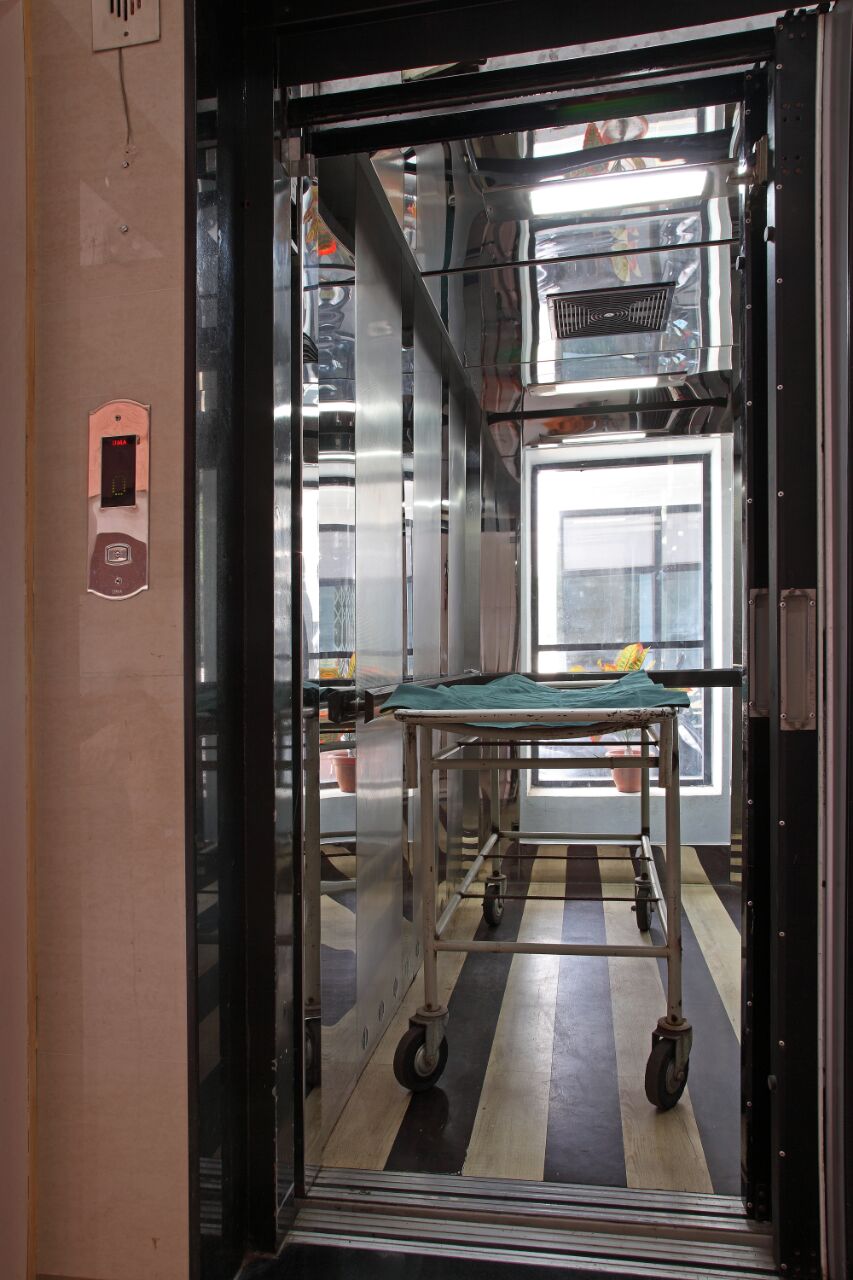

Strecher Elevators

The medical care infrastructure is increasing day by day. Hospitals are facing emergencies every now and then. Shifting of patients to operation theatres or post operative wards always demands less time for commutation.

TIME Hospital transportation system for hospitals have special features such as smooth and jerk less traveling, economically low power consumption, smooth and comfortable travel, accurate stoppage, emergency control features and above all, reliability with safety.

The car dimensions are as per the Indian Standard requirements for Hospital lifts. The sturdy floors and interiors ensure convenience and longevity. Additionally, large number of people can board the elevator simultaneously.

The hospital elevator is built using a robust structural steel frame, solid sheet metal side panels and metal top. Vertical side panels, full height, are fabricated from steel and are externally bolted to provide full interior surface with ideal strength and rigidity. It is provided with lighting fixtures.

• ♦ SPEED 0.35 M/S TO 1.5 M/S
• ♦ CAPACITY 13 TO 26 PASSENGERS
• ♦ CAR PANEL THICKNESS - 18 GAUGE STANDARD /16 GAUGE OPTIONAL
• ♦ FINISH SPRAY PAINTED / POWDER COATED / STAINLESS STEEL
• ♦ FLOORING MS CHEQUERED PLATE - STANDARD / ALUMINIUM - SS CHEQUERED PLATE
• ♦ DOORS COLLAPSIBLE / IMPERFORATED / TELESCOPIC / AUTOMATIC / VERTICAL-BI-PARTING
